Single Beam Inversion Hanging Overhead Crane 30m Lifting

Brand Name : Dowellcrane

Model Number : LX

Certification : SGS IOS CE

Place of Origin : China (Mainland)

MOQ : 1

Payment Terms : Western Union, L/C, T/T

Supply Ability : 4000sets per year

Delivery Time : 30 work days

Packaging Details : Packed by plywood crate or plastic woven cloth

Product name : single beam inversion hanging overhead crane

Warranty : 2 Years

Span : 7.5-22.5m

Condition : New

After-sales service provided : Free spare parts

Max. lifting height : 6m~30m

Rated lifting moment : Different

Max. lifting load : 20t

Application : warehouse and so on

Power supply : 3 Phase AC 380V 50HZ

Contact Now

single beam inversion hanging overhead crane​

Description of single beam inversion hanging overhead crane​

The Lx Model Electric Suspension Single Beam Overhead Crane 1~10 ton is used with CD1 and MD1 electric hoists to form a light and small crane with rail operation. The machine is mostly made of dry machinery. Assembly workshops and warehouses, caves and other places. Run rails with I-beams.

Main Features of single beam inversion hanging overhead crane​


1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Lifting Weight

(t)

Span

(m)

Lifting Height

(m)

Lifting Speed

(m/min)

Trolley Speed

(m/min)

Crane Speed

(m/min)

Recommended

Track

1

7.5~22.5

6~12

0.8/5

2~20

3~30

I20a~I45c

2

6~12

I22a~I45c

3.2

6~12

I32a~I45c

5

6~12

I32a~I45c

10

6~12

I40b~I63c

Working Level

A5

Power

380V,50Hz or other

Working Temperature

 -20~40℃

Drawing of single beam inversion hanging overhead crane​

Single Beam Inversion Hanging Overhead Crane 30m Lifting

Single Beam Inversion Hanging Overhead Crane 30m Lifting

Single Beam Inversion Hanging Overhead Crane 30m Lifting

Related products

Single Beam Inversion Hanging Overhead Crane 30m Lifting
LB Explosion Proof single girder overhead crane
Capacity: 1-20 ton
Hoisting height: 1-30 m
Span: Max 31.5 m
Control: Pendant control, remote control,cabin control

LDA single girder overhead crane

Capacity: 1-32Ton

Span: Max 32M

Speed : single speed,double speed

working class: A3

control : pendant control, remote control

Power supply : 380V-50Hz. 3 phase

 Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting

Qz double girder overhead crane

Capacity: 5-150Ton

Span: Max 35M

Speed : Single (Double) speed,VDF speed control

Working Class: A5-A8

Control : Cab control, Remote control

Power Supply : 380V-50Hz,3 phase

QD double girder overhead crane

Capacity : 5-150Ton

Span: Max 35M

Speed: Single (Double) speed,VDF speed control

Working Class : A5-A8

Control : Cab control, Remote control

Power Supply: 380V-50Hz. 3 phase

Single Beam Inversion Hanging Overhead Crane 30m Lifting

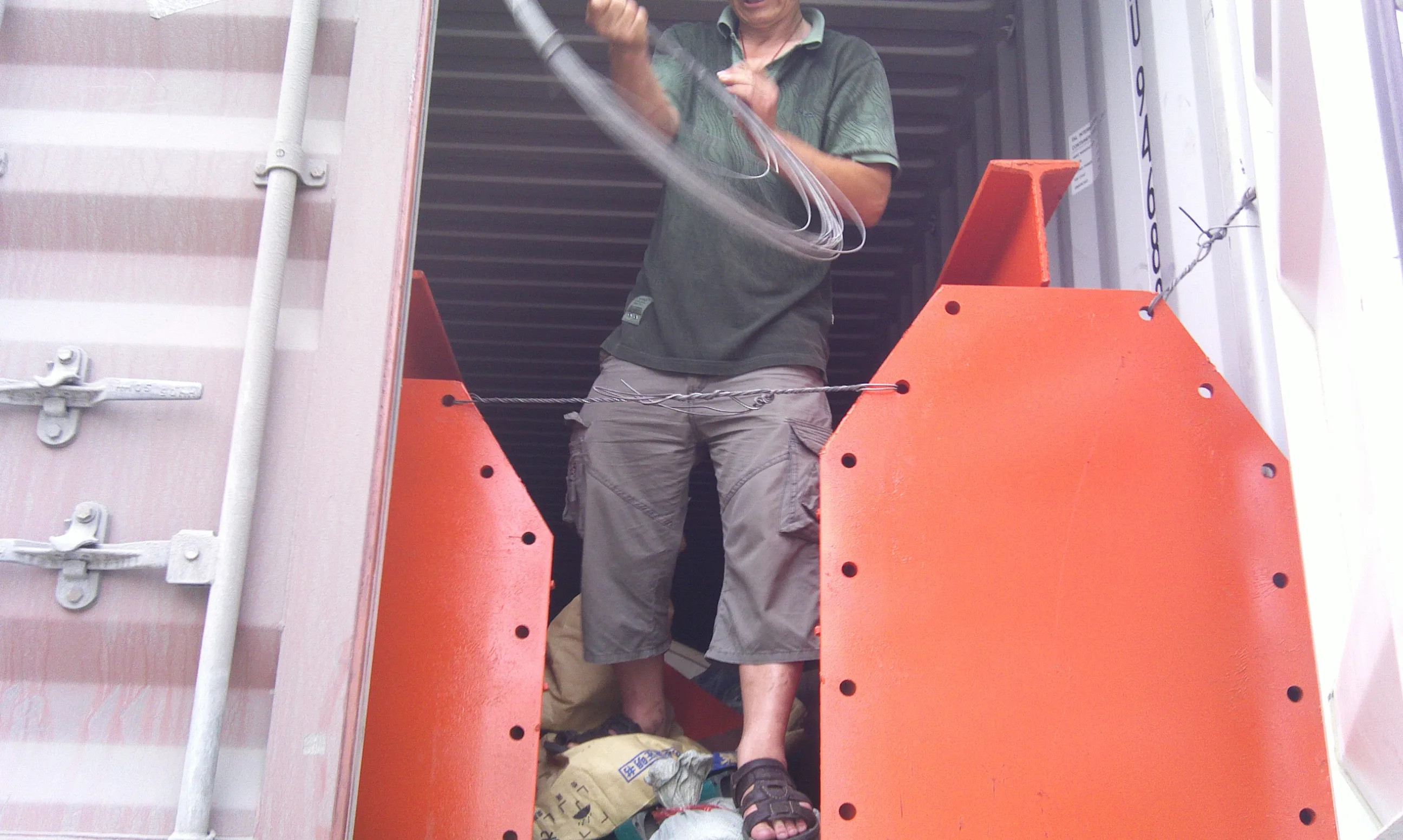

Packing & Delivery

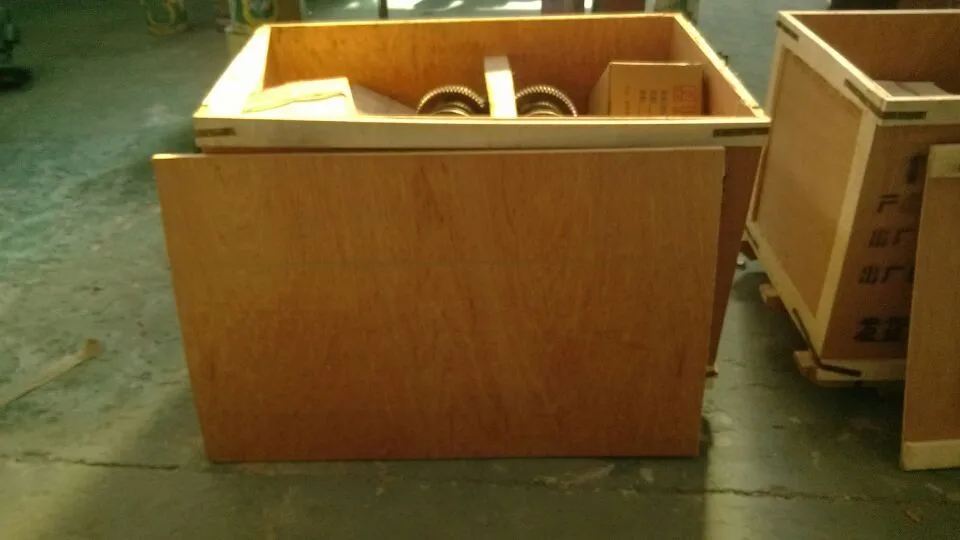

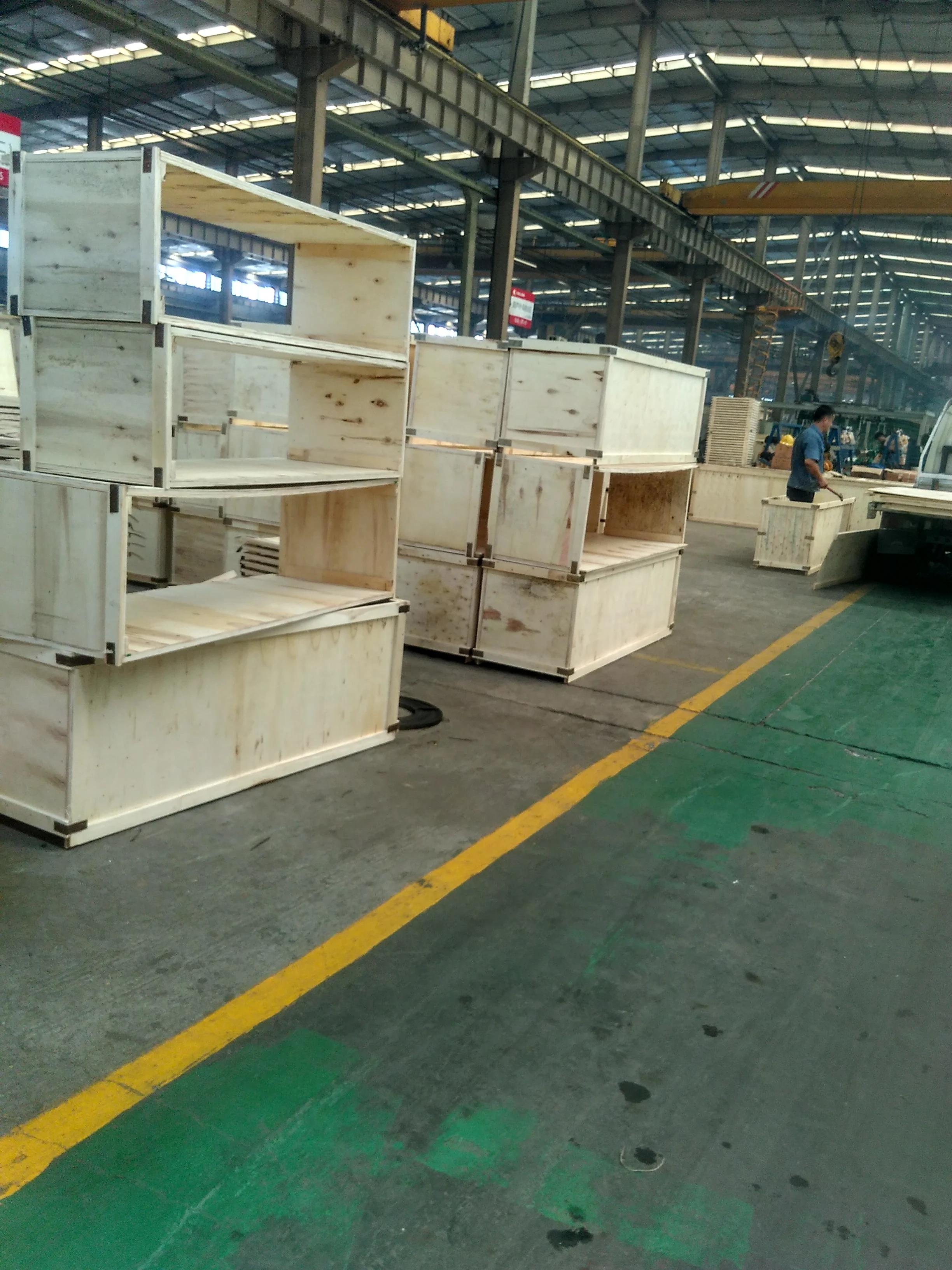

Wooden box+plastic

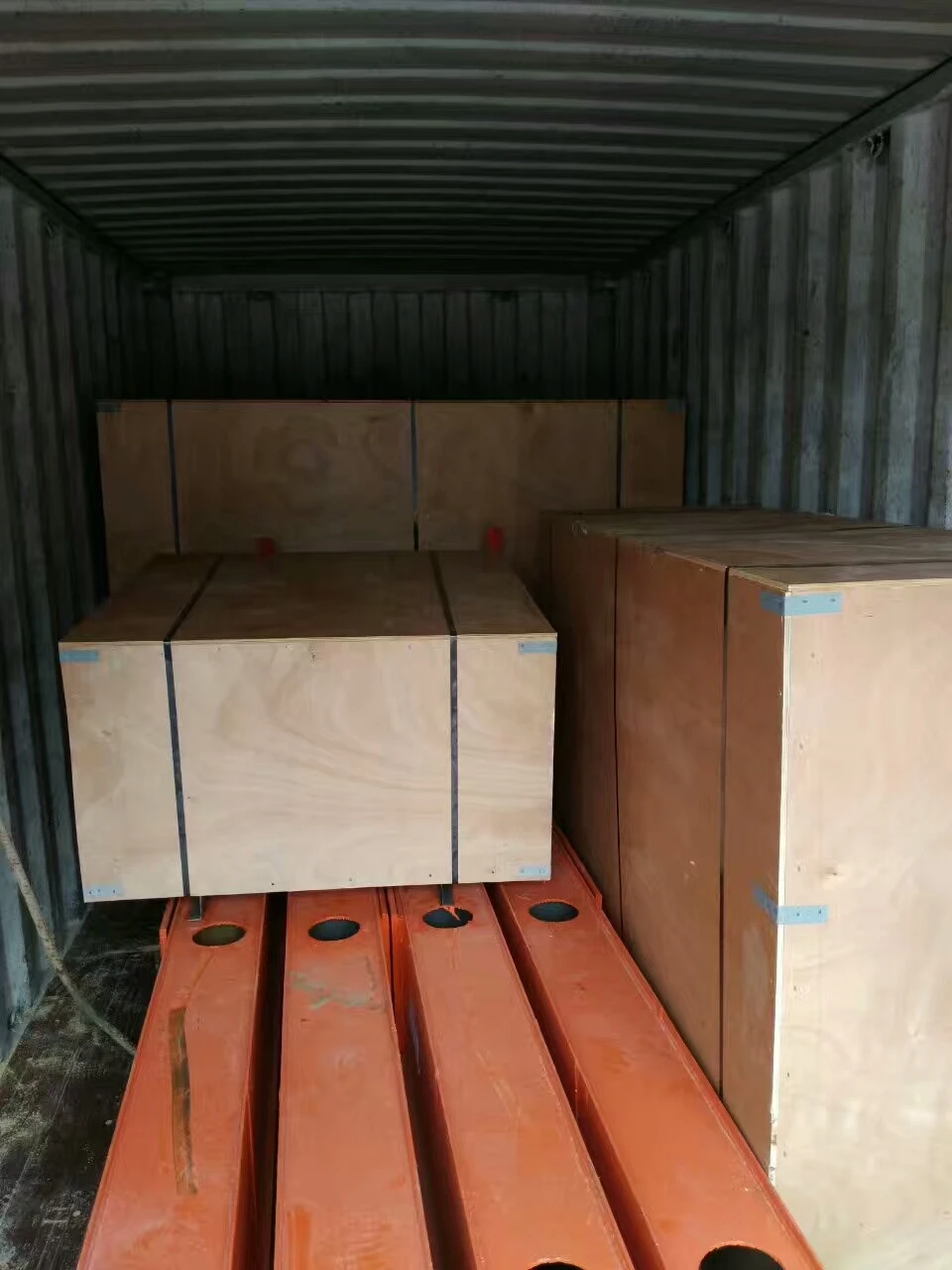

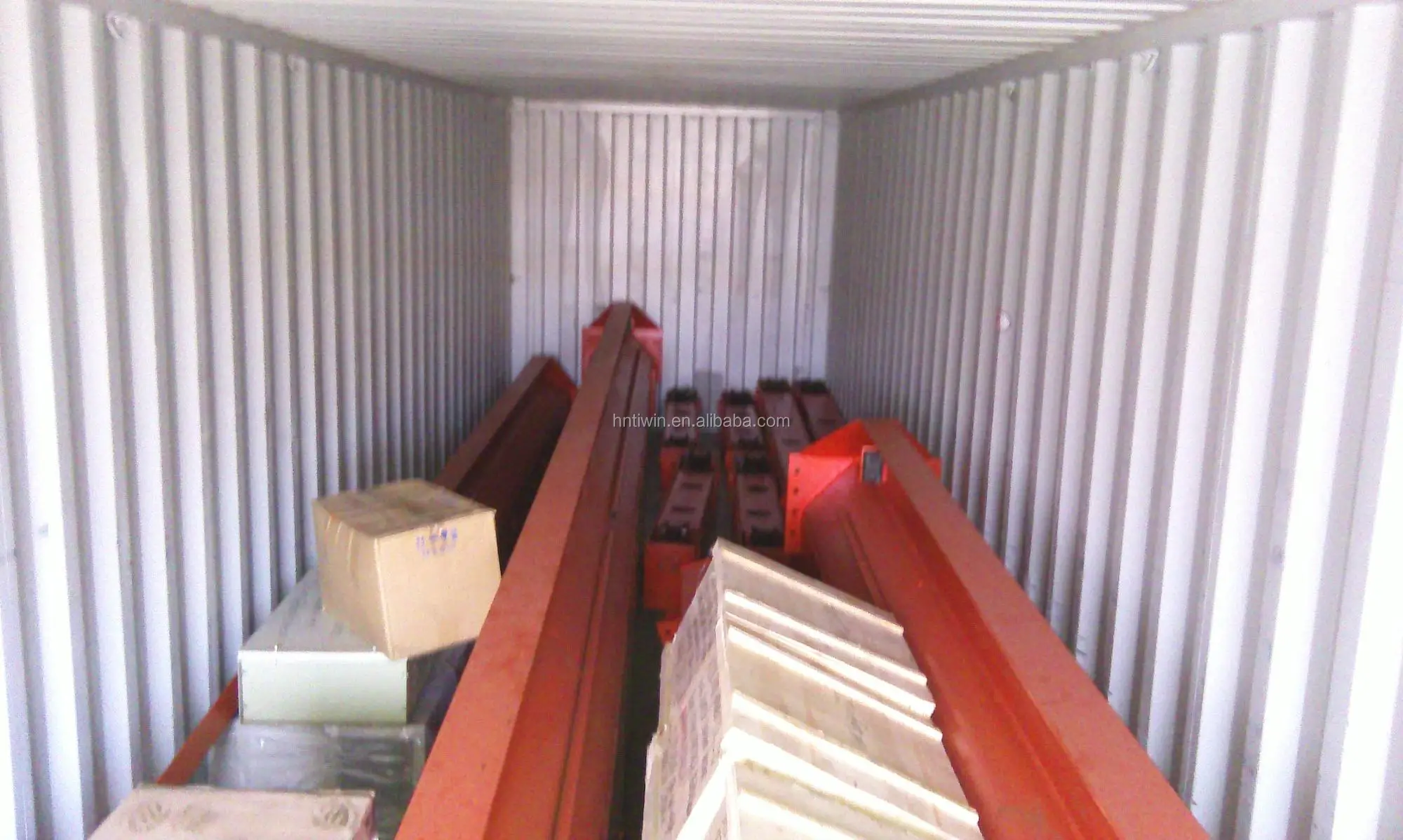

Hoist and small spares are packed by wooden box ,main girder and end girder are packed by plastic

Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting
Single Beam Inversion Hanging Overhead Crane 30m Lifting
